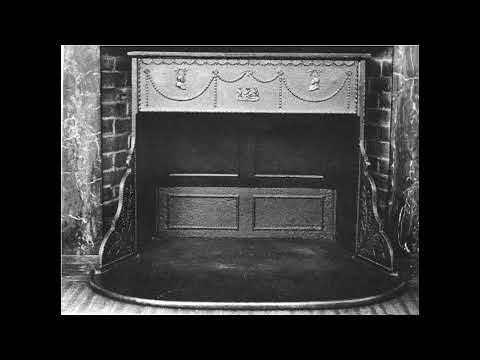

The Ultimate Franklin Stove Guide: Modern Use, Installation, Maintenance & Heat Efficiency Explained

The market for solid‑fuel heating has shifted from pure nostalgia to a practical, eco‑friendly option. Today’s homeowners choose Franklin stoves for three main reasons: low operating cost, the ability to heat specific zones without central HVAC, and the aesthetic of a live fire. In rural areas without reliable gas service, a well‑tuned Franklin can slash heating bills by up to 30 percent compared with electric baseboards. Even urban renovators install them as a focal point in lofts, pairing the stove with a glass door to showcase the flame while keeping emissions within code limits.

Manufacturers have responded with updated models that feature air‑wash glass, sealed combustion chambers, and EPA‑certified emissions controls. These upgrades preserve the classic cast‑iron silhouette while meeting modern environmental standards. As a result, you’ll find Franklin stoves listed on major home‑improvement sites alongside pellet and wood‑pellet inserts, confirming their continued relevance.

A traditional open fireplace is essentially a decorative vent for a fire, losing up to 90 percent of its heat up the chimney. A Franklin stove, by contrast, captures and radiates heat through a thick cast‑iron body that acts like a thermal battery. When you replace a fireplace with a Franklin, you’re not just swapping décor—you’re installing a heat‑exchanger that can deliver three to four times more usable warmth.

To make the switch, you’ll need to assess the opening size, clearances to combustible materials, and the existing flue. Most retrofits involve inserting the stove into the fireplace cavity and extending the chimney with a stainless‑steel liner to meet the stove’s venting requirements. The result is a sealed system that draws fresh air from outside, preventing negative pressure in the home and eliminating the drafty feel that often accompanies old fireplaces.

Maintenance for a Franklin stove is surprisingly straightforward, but skipping steps can erode its efficiency fast. First, after each burn, scoop out the ash to a depth of about two inches; this prevents ash from blocking air inlets and keeps the burn rate consistent. Second, inspect the firebrick and the cast‑iron interior quarterly. Cracks or spalling indicate the need for a professional re‑brick, which restores the stove’s ability to absorb and radiate heat.

Third, the gaskets around the door and glass should be checked every six months. A soft, pliable gasket ensures a tight seal, which is crucial for controlled airflow. Replace any that feel brittle or show gaps. Finally, schedule an annual chimney sweep. Even though the stove’s design minimizes creosote, a buildup can still occur in the flue, especially if you burn soft wood. A clean chimney maintains draft and reduces the risk of a chimney fire.

Yes, you can cook on a Franklin stove, and many owners treat it like a built‑in outdoor kitchen. The stove’s flat top, when fitted with a cast‑iron griddle or a Dutch oven, becomes a reliable heat source for simmering soups, searing steaks, or baking bread. The key is temperature control: start with a small fire, let the stove’s mass absorb heat, then spread the coals evenly across the surface. This creates a gentle, even heat ideal for slow‑cooking dishes.

For a practical example, imagine making a pot of chili on a cold winter night. Light a moderate fire, let it burn down to a bed of glowing embers, and place a seasoned Dutch oven on the top. The stove’s thermal inertia keeps the temperature steady for hours, freeing you from constant monitoring. Just remember to keep the stove’s door slightly ajar to maintain airflow and avoid excess smoke inside the house.

Hardwoods such as oak, maple, and hickory are the gold standard for Franklin stoves. Their dense fibers store more energy, producing hotter, longer burns with less smoke. Season the logs for at least 12 months; moisture content should be below 20 percent. Wet wood not only reduces heat output but also creates creosote, which clogs the chimney.

If you live in a region where hardwoods are scarce, a blend of soft and hard wood works, but keep soft wood (like pine) to a minimum and use it only for kindling. Soft wood ignites quickly, giving you that initial burst of heat, while the hardwood takes over for sustained warmth. Avoid processed woods—treated lumber, pallets, or driftwood—because chemicals can release toxic fumes when burned.

A Franklin stove does not need a traditional masonry chimney; instead, it relies on a correctly sized, insulated metal flue that meets local building codes. The flue diameter is usually 6 to 8 inches, and the length must provide enough draft—generally a minimum of 3 feet of vertical rise for every foot of horizontal run. Installing a stainless‑steel liner inside an existing chimney is common practice; it protects the old masonry from heat and corrosion while ensuring a tight seal.

In addition to size, the chimney must terminate at least three feet above the roof line and two feet away from any opening, per code. A high‑efficiency Franklin stove may also feature a secondary air intake that pulls fresh outdoor air directly into the combustion chamber, reducing the load on the primary chimney and improving overall burn efficiency.

The hallmark of a Franklin stove is its ability to convert wood’s chemical energy into usable heat with minimal loss. Modern models achieve an efficiency rating of 70‑80 percent, meaning three‑quarters of the heat generated stays inside your home rather than escaping up the flue. This is largely due to the thick cast‑iron walls that absorb heat and release it slowly over time, creating a radiant warmth that feels more natural than forced‑air systems.

Comparatively, a standard open fireplace hovers around 10‑15 percent efficiency. By installing a Franklin stove, you can expect a measurable reduction in wood consumption—often 30‑40 percent less—for the same heating output. Pair the stove with proper insulation and a programmable thermostat, and you’ll see a noticeable dip in your overall energy bill.

While the idea of a weekend DIY project is tempting, installing a Franklin stove involves more than bolting a metal box to the floor. You must calculate clearances, cut a precise opening in the floor or wall, and ensure the venting system complies with local fire codes. Mistakes can lead to back‑drafting, carbon monoxide buildup, or even structural damage.

If you have experience with masonry, HVAC, or have successfully installed a wood‑burning insert before, you might tackle the job yourself—just be prepared to obtain a permit, perform a thorough inspection, and possibly hire a certified chimney sweep for the final clearance. For most homeowners, hiring a licensed installer saves time, guarantees code compliance, and often includes a warranty on the workmanship.

A well‑maintained Franklin stove can outlive the house it heats. Cast iron resists corrosion and deformation, so many vintage units from the 1800s are still operational today. With regular ash removal, gasket replacement, and an annual chimney sweep, you can expect a functional lifespan of 30 to 50 years, sometimes longer.

Factors that shorten life include neglecting the firebrick, using unseasoned wood, or allowing water to pool on the exterior. If you notice rust forming on the exterior, wipe it down promptly and consider applying a high‑temperature paint to protect the surface. Periodic professional inspections can catch early wear before it becomes a costly repair.

A Franklin stove can serve as the main heating system in a well‑insulated home, especially in colder climates where wood is abundant and affordable. The key is sizing: calculate the heat loss of your living space (BTU per square foot) and select a stove with a rated output that meets or exceeds that demand. For a 1,500‑square‑foot home with moderate insulation, a 30,000‑BTU stove typically suffices.

Combine the stove with a smart thermostat that monitors room temperature and adjusts the damper accordingly. This setup mimics the responsiveness of modern HVAC while preserving the rustic charm of a wood fire. However, keep a backup heat source—electric or gas—available for extreme cold snaps or when wood supply runs low, ensuring you never get caught off‑guard.
