The Ultimate Guide to Testing and Maintaining Your Refrigerator Compressor

The compressor is the heart of the refrigeration cycle; if it falters, the whole system loses its ability to extract heat. A failing unit may still run, but at reduced efficiency, driving up electricity bills by 15‑30 percent. Worse, the interior temperature can creep above safe storage levels, leading to spoiled groceries and potential health hazards. Detecting a problem early means you can schedule a repair during a low‑usage period, avoid emergency service premiums, and keep your energy consumption in check.

Think of the compressor like a car engine. You wouldn’t wait for the check engine light to flash before checking oil levels; similarly, a subtle rise in operating temperature or a faint clicking sound can be an early warning that the motor’s internal bearings or the start‑relay are wearing out. Early intervention often means a simple part swap rather than a full system replacement.

You don’t always need a voltmeter to get a sense of compressor health. First, listen. A healthy compressor produces a steady, low‑pitched hum. If you hear rattling, squealing, or intermittent clicking, the start‑relay or internal piston may be stuck. Next, feel the case. After the fridge has run for 15‑20 minutes, the compressor should be warm, not scorching. A pipe‑hot surface suggests the motor is overworking, possibly due to low refrigerant or a blocked condenser.

Another low‑tech method is the “power‑cycle test.” Unplug the fridge, wait five minutes, then plug it back in while watching the compressor. It should kick on within a few seconds and stay on. If it cycles on and off rapidly, the overload protector could be tripping, indicating an electrical fault that will eventually need a multimeter or professional diagnosis.

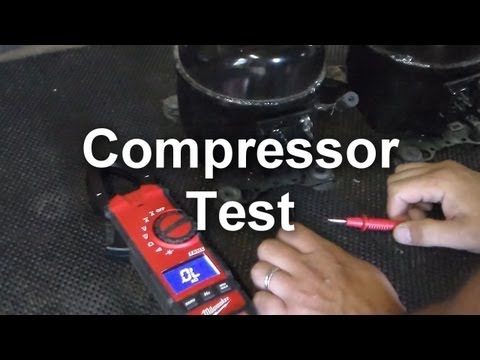

A multimeter lets you verify that the compressor’s windings are intact and that the start‑relay is delivering the correct voltage. First, disconnect power and locate the three service terminals: C (common), S (start), and R (run). Set the meter to ohms and measure resistance between C‑R and C‑S; typical values range from 2‑6 Ω for a 115 V compressor. A reading of zero or infinite resistance points to a short or an open winding, respectively.

Next, with power restored (use a plug‑in test lead with a safety probe), measure voltage across C‑R while the compressor is attempting to start. You should see the line voltage (120 V in North America). If the voltage drops dramatically when the compressor tries to start, the start‑relay is likely failing. Document each reading, compare it to the manufacturer’s spec sheet, and you’ll have a clear, objective basis for deciding whether to repair or replace.

Beyond the audible and temperature clues, there are several concrete symptoms that indicate a compressor is on its last legs. First, frequent defrost cycles—if the freezer constantly fogs up, the compressor may be unable to maintain the low evaporator temperature. Second, ice buildup on the back panel can signal that the compressor isn’t pulling enough heat away, causing moisture to refreeze. Third, a noticeable increase in the unit’s power draw, measurable with a plug‑in wattmeter, often precedes a total shutdown. Finally, erratic temperature readings—like the fridge staying at 45 °F while the freezer is at 30 °F—suggest the compressor’s output is uneven.

Each of these signs tells a different part of the story. Ice buildup points to low suction pressure, while power spikes hint at mechanical friction inside the motor. Recognizing the pattern helps you communicate more precisely with a service technician, potentially saving you labor costs.

A good rule of thumb is to perform a basic visual and acoustic check every three months, especially during seasonal temperature swings when the unit works harder. For a full electrical test with a multimeter, schedule it once a year—ideally before the summer heat peaks, when the compressor’s workload is greatest. If your fridge is over ten years old, increase the frequency to semi‑annual checks, because wear accelerates after the first decade.

Document each inspection in a simple log: date, ambient room temperature, any noises heard, and voltage readings if you used a meter. Over time you’ll spot trends—like a gradual rise in winding resistance—that signal impending failure before it becomes catastrophic.

Swapping a compressor isn’t a weekend hobby for most homeowners, but it’s not impossible if you have the right tools and a solid understanding of refrigeration cycles. You’ll need a refrigerant recovery system (or a certified technician to do the recovery), a torque wrench, a set of flare tools, and a new compressor that matches the original’s specifications (voltage, capacity, and refrigerant type). The process involves evacuating the system, disconnecting the sealed lines, removing the old motor, installing the new one, and then pulling a deep vacuum before re‑charging with the correct refrigerant charge.

Even if you manage the mechanical steps, the legal requirement in many jurisdictions is that only a licensed technician can handle refrigerant gases. Skipping that step can void the warranty, cause environmental harm, and lead to fines. For most users, the safest path is to diagnose the problem yourself, then call a professional for the actual swap.

Most residential compressors are built to last 10‑15 years under normal usage. Factors that shorten that window include frequent power surges, poor ventilation around the condenser coils, and running the fridge in a hot garage or attic. Conversely, regular coil cleaning, ensuring a 2‑inch clearance around the unit, and using a surge protector can add several years to the compressor’s life.

A practical tip: install a simple temperature sensor on the condenser’s surface and set up an alert if it exceeds 120 °F. When the sensor triggers, you know the motor is working harder than it should, prompting a coil cleaning or fan inspection before the compressor overheats.

Manufacturers generally allow owners to perform routine maintenance, including visual inspections and temperature checks, without jeopardizing the warranty. However, any invasive testing—like opening the sealed system or using a multimeter on internal terminals—can be considered a modification if not performed by an authorized service provider. To stay safe, read the warranty booklet; many include a clause that permits “diagnostic testing with approved tools.” Keep receipts for any tools you purchase and document the test steps, showing you followed the prescribed procedure.

If you’re unsure, call the brand’s support line before you start. They can confirm whether a specific test method is covered, saving you a potential denial of warranty claims later on.

The best defense against compressor failure is a clean, well‑ventilated system. Schedule a condenser coil cleaning every six months; a dusty coil forces the compressor to work harder, raising its temperature and shortening its lifespan. Check the evaporator fan blades for dust and ensure they spin freely—blocked airflow can cause the compressor to cycle excessively.

Another often‑overlooked habit is to avoid overloading the fridge. Packing shelves to the brim restricts air circulation, making the compressor run longer cycles. Instead, keep a modest amount of space for cold air to flow, and rotate older items to the front so they’re used first. Small lifestyle tweaks like these keep the compressor in its sweet spot.

If your multimeter readings show an open winding or the start‑relay voltage drops, the compressor is likely beyond repair. The next step is to confirm the diagnosis with a second test or by swapping the start‑relay with a known good unit. Once you’re certain, contact a certified technician to recover refrigerant and replace the compressor.

Before you agree to a full replacement, ask for a cost‑benefit analysis. In some cases, especially with older units, the expense of a new compressor plus labor approaches the price of a new refrigerator. Weigh the age of the appliance, energy efficiency ratings, and potential savings from a newer model before making a final decision.

Never work on a live compressor without insulated gloves and safety glasses. The high voltage (120‑240 V) and refrigerant pressure can cause serious injury. Always unplug the appliance before removing panels, and label each wire before disconnecting it to avoid mis‑wiring later.

If you’re handling refrigerant, wear a mask and ensure the area is well‑ventilated. Refrigerant leaks can cause frostbite or asphyxiation in confined spaces. Finally, keep a fire extinguisher rated for electrical fires nearby—compressor motors can spark if a short occurs during testing.

Transparency is key. Disclose the compressor condition in the listing, noting whether it’s been tested, the exact fault, and any repair estimates you’ve received. Providing a recent diagnostic report builds buyer trust and can actually increase the sale price compared to a vague “needs work” description.

You might also consider offering a discount that reflects the repair cost, or arranging for the buyer to have the unit inspected by a licensed technician before finalizing the sale. This approach reduces the risk of post‑sale disputes and keeps the transaction professional.

Beyond avoiding a spoiled dinner, systematic testing saves money in three concrete ways. First, early detection prevents a cascade of secondary failures—like a burnt‑out fan motor caused by an overheating compressor. Second, a well‑maintained compressor runs at optimal efficiency, shaving up to 30 kWh per year off your electricity bill. Third, a documented maintenance history can increase resale value; buyers often pay a premium for appliances with a clear service record.

In short, treating the compressor like a car engine—regular check‑ups, timely oil changes (in this case, coil cleaning), and prompt repairs—keeps your kitchen running smoothly and your wallet healthier.
