The Ultimate Pellet Stove Reset Guide: Locate, Use, and Troubleshoot the Reset Button Like a Pro

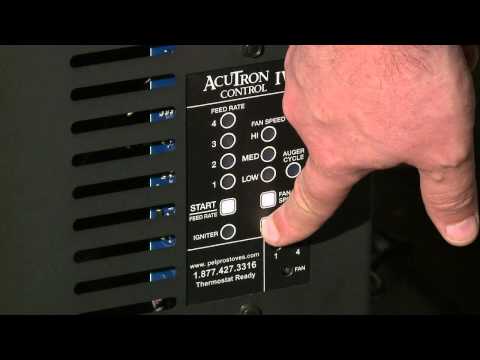

Most manufacturers hide the reset button where it’s easy to reach but out of the way of accidental presses. On entry‑level stoves the button sits on the front control panel, often marked with a small red or yellow circle and the word “RESET.” Higher‑end units may tuck it behind a removable access panel near the auger motor or inside the combustion chamber housing. For example, the Harman P68 places the button behind a screw‑fastened cover on the right side of the hopper, while the US Stove 80 uses a recessed push‑button on the top of the electronic control board. If you can’t spot a button, consult the owner’s manual’s wiring diagram – the reset circuit is usually labeled “RST” and linked to the main control board.

A quick visual cue: the reset button is typically a tactile, spring‑loaded push button, not a toggle switch. It may be slightly raised and require firm pressure (about half a second). Some newer models replace the physical button with a touchscreen “Reset” icon; in those cases the software command performs the same function.

Pellet stoves are equipped with sensors that monitor temperature, feed rate, and combustion quality. When a sensor reads outside safe parameters, the control board cuts power to prevent fire, overheating, or damage to the auger. Common triggers include a clogged exhaust vent, a jammed auger, low hopper pressure, or a failed ignition spark. The reset button clears the fault flag, tells the board that you’ve addressed the underlying issue, and allows the stove to restart its startup sequence.

Think of the reset button as a “reset button” on a computer that clears a crash report after you’ve fixed the cause. If you ignore the root cause and just press reset repeatedly, the stove will keep shutting down – much like a computer that keeps blue‑screening because of a faulty RAM module.

A reset should be a last‑resort action, not a daily habit. If you find yourself pressing it more than once a week, something deeper is wrong. Ideally, you’ll only need to reset after routine maintenance – for instance, after cleaning the ash pan or after a power outage that caused the control board to lose its state. A good rule of thumb: one reset per heating season is normal; anything beyond that signals a recurring fault that warrants inspection.

Tracking resets can be helpful. Keep a simple log in a notebook or a spreadsheet: date, reason (e.g., “vent blockage cleared”), and outcome. Over time you’ll spot patterns – perhaps a specific weather condition or a particular pellet brand that causes more resets.

If a press doesn’t bring the stove back online, first verify that the underlying issue has truly been resolved. Check the exhaust vent for blockages, ensure the hopper is full and the feed screw spins freely, and confirm the ignition electrode is clean. Next, power cycle the unit: turn off the stove, unplug it for at least 60 seconds, then plug it back in. This forces the control board to perform a full reboot, clearing any lingering error codes.

If the stove still refuses to start, consult the error code chart in the manual. Many models display a blinking LED pattern that points to a specific sensor failure. At this stage, it’s wise to call a certified technician – especially if the fault involves the high‑temperature limit switch or the main gas valve, both of which require professional handling.

Regular maintenance is the single most effective way to keep resets at bay. Clean the exhaust vent and blower motor every 50 hours of operation; a buildup of ash and creosote can cause overheating and trigger a reset. Inspect the auger screw for wear or debris and lubricate the bearings with a high‑temperature, food‑grade oil. Keep the hopper dry and store pellets in a cool, airtight container to prevent moisture‑induced clumping that can jam the feed system.

Another tip: install a carbon monoxide detector near the stove. While it won’t stop a reset, it gives you early warning of combustion issues that often precede a fault. Finally, use the manufacturer‑approved pellet brand and size. Mixing brands can alter the ash content and feed characteristics, leading to more frequent sensor trips.

After you press the button, the stove’s display should transition from an error code to the normal startup sequence – usually a brief “Igniting” or “Feeding” message followed by the flame indicator lighting up. Listen for the auger motor turning and feel the gentle vibration of pellets moving. If the stove lights within 30 seconds and maintains a steady burn, the reset was successful.

If the stove flashes the same error code again, the reset failed. Some units provide a short beep or a flashing LED that confirms the reset command was received; use that as a visual cue that the board recognized your input.

When the button is hidden behind a panel, you may need a screwdriver to remove the cover. Turn off and unplug the stove first – safety first. If you’ve exhausted the manual and still can’t find it, search online forums for your specific model; owners often post photos of the button’s location. As a last resort, contact the manufacturer’s support line. They can walk you through the exact steps and may send a diagram if the model is older and documentation is scarce.

Never attempt to force open sealed enclosures; doing so can void warranties and expose you to live electrical components.

Pressing the reset button on a stove that is actively heating is generally safe because the button is designed to interrupt the control circuit without cutting power to the heating elements instantly. The stove will finish its current combustion cycle, then pause and restart. However, if you notice smoke, a strange odor, or an unusual noise, shut the unit down immediately before resetting. The reset button is not a substitute for an emergency shut‑off; treat it as a controlled reboot, not a panic button.

Before you even think about pressing the reset, make sure the area around the stove is clear of flammable objects and that the stove has cooled down at least 10 minutes after a shutdown. Wear heat‑resistant gloves if the stove was recently active. Verify that the power cord is intact and the outlet is grounded. If the stove is mounted on a wall, ensure the mounting brackets are secure – a loose bracket can cause the unit to shift when you press a button, potentially damaging internal components.

If any of these safety checks raise a red flag, call a professional. The reset button is safe for most owners, but only when the stove is in a stable, non‑hazardous condition.

A non‑responsive button can be caused by corrosion, a broken spring, or a loose wire on the control board. First, visually inspect the button for dirt or ash buildup; a quick blast of compressed air can clear debris. If the button feels mushy or doesn’t click, the internal mechanism may be worn out. In that case, you’ll need to replace the button assembly or the entire control board, which is best left to a qualified technician.

Some manufacturers sell a replacement reset module that snaps into the existing housing. Keep the model number handy and order the exact part to avoid compatibility issues.

From the moment you press the button to the stove’s first flame, expect a 20‑ to 45‑second window. The control board runs a self‑diagnostic routine, re‑initializes sensors, and then initiates the ignition sequence. If the stove takes longer than a minute to light, it’s likely still encountering a fault and will revert to an error code.

Patience is key: give the stove the full diagnostic period before deciding the reset failed. Rushing the process by repeatedly pressing the button can confuse the control logic and prolong the downtime.

Modern stoves with electronic controls often allow a “soft reset” via the button without cutting power. This is useful if the stove has tripped a sensor but the rest of the system is still stable. However, certain faults – like a blown fuse or a thermal overload – require a full power cycle to clear. In those cases, you’ll need to turn the stove off, unplug it, wait a minute, and then press the reset after plugging it back in. The manual will specify which errors need a hard reset versus a soft reset.

The reset button is not just a convenience; it’s a safety interlock. When a sensor detects an unsafe condition, the control board disables the ignition and feed mechanisms, then lights the reset lamp to alert the user. Pressing reset tells the board that you’ve inspected the system and are ready to re‑engage the safety checks. This design prevents the stove from automatically restarting into a hazardous state, protecting both the appliance and your home.
