The Ultimate Stove Jack Guide: Sizing, Installation, Materials, Maintenance, and Real‑World Use Cases

Start by locating the stove pipe’s outside diameter (OD). Most portable wood‑burning stoves use 4‑inch, 6‑inch, or 8‑inch pipes, but custom setups can be odd sizes. Use a steel tape or caliper to measure the OD and then measure the wall thickness—typically 1/8 to 3/16 inch. Subtract the wall thickness from the OD to get the pipe’s inside diameter (ID); the jack’s sleeve must match this ID closely. Add a tiny clearance—about 1/8 inch—to accommodate expansion when the pipe heats up. If you’re installing a flexible chimney, measure the flexible section’s nominal size, not the collapsed diameter. Finally, verify the flange diameter; a 4‑inch pipe usually pairs with a 6‑inch flange, giving enough canvas overlap for a watertight seal.

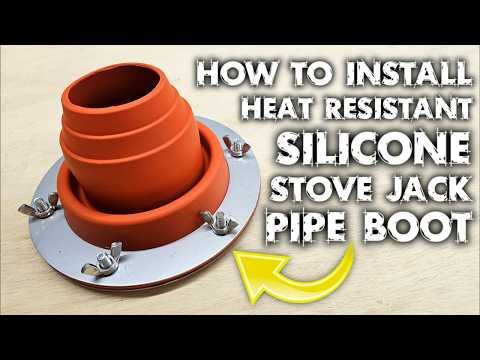

You don’t need a professional to fit a stove jack, but you do need a few essentials: a sharp fabric cutter or rotary knife, a heat‑resistant silicone sealant, a stainless‑steel locknut wrench, and a marker for layout. First, lay the tent or shelter flat and mark the exact spot where the exhaust will exit—usually the highest point to encourage draft. Cut a clean, circular hole using the marked diameter of the flange; a jagged edge will compromise the seal. Slip the jack’s flange onto the fabric, apply a bead of silicone around the inner edge, and press the jacket firmly into place. Insert the pipe, tighten the locknut by hand, then finish with a wrench—no more than a half turn beyond hand‑tight to avoid crushing the gasket. Check that the pipe sits straight; a misaligned pipe can stress the seal and cause leaks. Always let the silicone cure for at least 24 hours before lighting the stove.

Stove jacks come in three primary material families. Stainless steel (usually 304 or 316 grade) offers the best heat tolerance—up to 1200 °F—plus excellent corrosion resistance, making it ideal for wet climates or salty air. Aluminum alloys are lighter and cheaper, handling temperatures up to 800 °F; they’re popular for backpacking rigs where weight matters, but they can warp if exposed to prolonged high heat. Composite or silicone‑coated jacks exist for ultra‑light ultralight shelters; they rely on a metal core for strength but add a flexible outer skin to conform to irregular fabric. When choosing, weigh the trade‑off between durability and weight, and consider the typical fire intensity of your stove.

A jack isn’t magically waterproof; its seal depends on the gasket and the installation technique. Most stainless‑steel jacks ship with a high‑temperature silicone or PTFE gasket that expands when hot, tightening the seal. If you install the jack in dry conditions and let the silicone cure fully, the joint will repel water even during a downpour. However, a poorly cut aperture or missing sealant will let rain seep in, soaking the pipe and potentially causing rust. For extra protection, apply a thin layer of waterproof fabric tape around the flange after the silicone cures. In heavy snow, the gasket’s elasticity helps it maintain contact as the fabric contracts and expands.

Not every stove pairs with every jack. Catalytic wood burners, which run at lower temperatures (around 500 °F), can use thinner‑walled aluminum jacks without issue. Large firebox stoves that push 1000 °F or more demand a heavy‑duty stainless steel jack with a reinforced flange. Additionally, some stoves feature a built‑in heat shield that requires a recessed jack—look for models labeled “recessed flange” or “low‑profile.” If you’re using a multi‑fuel stove that can burn coal or peat, opt for the highest temperature rating you can find; coal combustion produces more corrosive gases, and a stainless steel jack will resist the added acidity.

Treat your stove jack like a car’s exhaust system—it needs periodic attention. After each camping season, disconnect the pipe and brush away soot with a soft brass brush; avoid steel wool, which can gouge the gasket. Inspect the gasket for cracks, hardening, or compression set; replace it if you feel any give when you press it with a fingertip. Re‑apply a thin bead of high‑temp silicone around the flange once a year, especially if you notice any water pooling after rain. Tighten the locknut by half a turn after each use; the heat cycle can cause slight loosening. Finally, store the jack in a dry container; moisture trapped inside can accelerate corrosion, even on stainless steel.

Sometimes you need to repurpose a shelter or switch to a different stove. To remove a jack, first let the stove cool completely. Loosen the locknut using the appropriate wrench—turn it counter‑clockwise until it slides off the pipe. Gently pull the pipe out; the gasket should stay attached to the flange. If the gasket sticks, use a thin plastic spatula to pry it away without tearing the fabric. Once the pipe is out, cut the silicone seal with a razor blade, being careful not to nick the canvas. The flange can be left in place for a future reinstall, or you can patch the hole with a fabric repair kit if you no longer need the vent.

Canvas tents are the classic home for wood‑burning stoves because the thick fabric tolerates heat better than synthetic materials. A properly sized stainless steel jack fits snugly into a canvas wall, and the fabric’s natural breathability helps disperse residual heat. When installing, reinforce the cutout with a small piece of canvas tape on the inside; this prevents the fabric from fraying under the weight of the flange. In windy conditions, the canvas’s weight keeps the jack from rattling, and the silicone gasket seals out drafts that could pull smoke back into the tent.

A well‑installed stainless steel jack performs admirably in any climate. In desert environments, the metal reflects heat, and the silicone gasket remains flexible despite temperature swings from day to night. In arctic conditions, the gasket’s elasticity counters the fabric’s contraction, keeping the seal tight even when the canvas stiffens. The key is to use a gasket rated for the temperature extremes you expect; some manufacturers list a low‑temperature rating of -40 °F, which is ideal for high‑altitude winter camping. Pair the jack with a heat‑shielded pipe to prevent the surrounding fabric from scorching in extreme heat.

A stove jack isn’t limited to canvas tents. If you have a tarp shelter, reinforce the cutout with a thin plywood or metal backing before attaching the flange; this distributes the load and prevents the tarp from tearing. For a small wooden cabin, you can bolt the flange directly to a wall stud, using a fire‑rated silicone seal between the metal and wood. The same principle applies to a pop‑up shelter made of heavy‑duty nylon—just make sure the fabric’s melt point exceeds the pipe’s surface temperature, typically 500 °F for most nylon blends. In each case, the jack serves as a controlled exhaust channel, keeping smoke out while maintaining the structure’s integrity.

Manufacturers offer several jack configurations. The standard jack has a flat flange that sits flush against the fabric—ideal for most tents. Recessed jacks feature a deeper flange that sits inside a cutout, reducing the external profile; this is useful when you need a low‑profile vent to avoid snagging on gear. Adjustable jacks come with a sliding collar that lets you fine‑tune the pipe’s insertion depth, accommodating slight variations in pipe length or fabric thickness. Some premium models include a built‑in spark arrestor, which captures stray embers before they reach the fabric—an extra safety layer for high‑heat stoves.

Cleaning a stove jack is straightforward but often overlooked. After each use, let the pipe cool, then wipe the exterior of the flange with a damp cloth to remove ash residue. For stubborn buildup, soak a soft brush in a mixture of warm water and mild dish soap, then scrub gently. Rinse with a clean cloth and dry thoroughly; moisture left on the metal can cause rust, even on stainless steel. Store the jack in a zip‑lock bag with a silica packet to absorb any lingering humidity. A quick visual inspection before each trip will catch cracks or worn gaskets before they become a problem.
