The Ultimate Whirlpool Dishwasher Drain Guide: Diagnose, Fix, and Prevent Water Puddles

Water at the base of a Whirlpool dishwasher usually means something is preventing the rinse water from exiting the tub. The most common culprits are a clogged filter, a blocked drain hose, or a malfunctioning pump. Think of the dishwasher as a bathtub with a tiny drain: if the hair‑like debris (food particles) clogs the drain, the water simply backs up. In many cases the water level is low because the dishwasher’s built‑in float sensor detects excess water and stops the cycle, leaving a puddle.

A second, less obvious cause can be a misaligned or cracked hose that leaks water back into the tub after the pump has finished its job. This is why you sometimes see water only after the cycle ends, not during the wash.

The drain is tucked behind the lower rack, right where the spray arm pivots. Pull the front of the lower rack out, then lift it slightly to reveal a circular cover—often a plastic or metal grate secured with a single screw. Unscrew, lift, and you’ll see the drain inlet and a small rubber flap that prevents backflow.

With a flashlight, inspect for visible food bits, broken glass, or mineral buildup. A flexible brush or an old toothbrush works wonders to dislodge stubborn debris. If the water still won’t run, detach the hose from the dishwasher’s back (you’ll need a shallow bucket to catch any residual liquid) and blow through it; a clear, whistling sound means it’s open.

Commercial dishwasher cleaners are formulated to dissolve grease, limescale, and bio‑film that cling to the interior walls and spray arms. They excel at preventing slow‑draining issues caused by mineral buildup, especially in hard‑water areas. However, they won’t magically clear a solid piece of food stuck in the drain or a kinked hose.

Use a cleaner once a month if you have hard water, running an empty hot cycle with the product inside. For a one‑off blockage, skip the cleaner and go straight to manual removal—otherwise you risk pushing the debris deeper.

You can troubleshoot most blockages, but certain symptoms scream “call a tech.” A humming sound with no water movement suggests the pump motor is trying but failing to spin. If the dishwasher displays error codes like “E24” (drain error) repeatedly after your best attempts, the control board may be misreading sensor data. Also, if you notice burnt smells, frequent circuit‑breaker trips, or water leaking from the bottom of the unit onto the floor, those are electrical or plumbing issues beyond DIY scope.

Beyond the obvious clogs, several hidden factors sabotage drainage. A faulty check valve can allow water to flow back into the tub after the pump stops. A worn‑out pump impeller may spin but not generate enough suction, especially if debris has lodged in its vanes. Additionally, a mis‑programmed cycle timer can cut the pump off too early, leaving residual water.

Even the dishwasher’s float switch can malfunction, sending a false “water‑high” signal that aborts the drain phase. Testing the float is simple: lift it manually and listen for a click; if it sticks, the sensor needs cleaning or replacement.

Before you get your hands dirty, always disconnect power—unplug the unit or flip the breaker. Wear rubber gloves; dishwasher interiors can be surprisingly sharp. When you remove the drain hose, keep a bucket handy to avoid spills. If you need to reach deeper, use a flexible plumbing snake rather than a metal rod that could damage the hose lining.

Never force the pump rotor; it’s a delicate component. If you feel resistance, stop and reassess—forcing it can bend the impeller blades and create a bigger problem.

Whirlpool recommends cleaning the filter at least once a month, but heavy cooks should aim for every two weeks. The filter sits under the lower rack and looks like a small metal mesh cup. Pull it out, rinse under warm running water, and use a soft brush to remove stubborn particles. For grease‑heavy loads, soak the filter in a solution of warm water and dish soap for ten minutes before scrubbing.

Skipping this step is the fastest way to turn a perfectly good dishwasher into a slow‑draining nightmare. A clean filter not only improves drainage but also enhances drying performance.

If you open the door and see water sloshing, turn off the dishwasher and shut off the water supply to prevent further fill. Use towels to soak up the standing water, then run a quick visual inspection of the filter and drain. If the blockage is obvious, clear it and restart a short cycle. If water reappears, it’s time to investigate the hose or pump.

A handy trick: pour a cup of hot water mixed with a tablespoon of baking soda down the drain, wait five minutes, then follow with a cup of white vinegar. The fizz helps break down minor clogs without harsh chemicals.

A plunger works well on flat, horizontal surfaces like sinks, but the dishwasher’s drain is a narrow, vertical conduit with a built‑in flap valve. Using a plunger can damage that flap, creating a leak that pours water back into the tub. Instead, opt for a hand‑held drain auger or a flexible brush designed for appliance drains. If you must resort to suction, a wet‑dry vacuum set to “liquid” mode can pull out debris without stressing the valve.

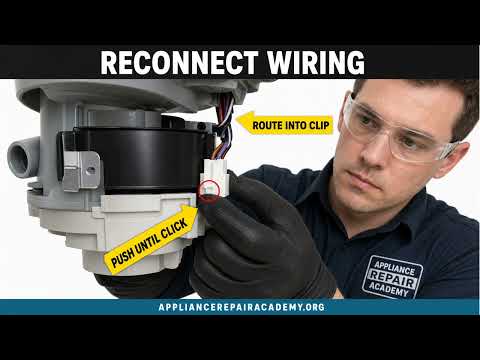

Listen closely during the drain phase. A healthy pump emits a steady whirring sound that gradually fades as water leaves. If you hear a high‑pitched squeal, the impeller may be rubbing against debris. No sound at all? The motor could be dead, or the pump’s electrical connection might be loose. You can also feel for vibration by gently placing your hand on the bottom of the dishwasher while it runs—some vibration indicates the motor is trying to turn.

If the pump runs but water doesn’t leave, the blockage is downstream. If there’s no vibration, replace the pump or have a technician test the motor’s continuity.

Beyond standing water, watch for slower fill cycles, dishes that remain spotty after the wash, or a lingering “wet” feeling after the drying phase. A faint odor of stale water can also hint at stagnant water in the tub. These cues appear before a full‑blown blockage, giving you a chance to intervene early with a simple filter clean or hose flush.

Create a weekly 5‑minute ritual: pull out the lower rack, remove the filter, rinse, and glance at the drain inlet for visible debris. Once a month, run an empty hot cycle with a dishwasher cleaner or a cup of white vinegar. Check the hose for kinks and ensure the air gap (if your home has one) isn’t clogged. Finally, avoid pre‑rinsing dishes excessively; a thin film of food particles is easier for the dishwasher to process than large chunks that can jam the system.
