The Ultimate Whirlpool Oven Door Removal & Cleaning Guide: Step‑by‑Step, Tools, Safety & DIY Replacement

A Whirlpool oven door is more than a piece of glass; it’s a sealed assembly that houses insulation, a heat‑reflective coating, and the hinges that keep the oven door aligned. Over time, cooking splatters, burnt-on food, and steam seep into the seal, creating a sticky film that obscures the view and traps heat. This can cause uneven cooking, especially in convection models where the door’s insulation plays a role in airflow. Removing the door lets you reach the hidden gasket and the interior of the glass panels, where most of the stubborn residue hides.

Beyond aesthetics, a clean door helps you spot cracks early. A hairline fracture in the outer glass often goes unnoticed until it spreads, and a quick visual inspection while the door is off can save you from a sudden shatter during a bake.

Surprisingly, Whirlpool designs its doors to be user‑serviceable with common household tools. A Phillips‑head screwdriver (or a flat‑head if your model uses slotted screws) and a small adjustable wrench for the hinge bolts are enough. Some newer models use quick‑release pins that you can pull with a flathead screwdriver or even your fingers. You’ll also want a soft cloth or towel to cradle the door once it’s free, preventing the heavy glass from dropping onto the stovetop.

You do not need a drill, a torque wrench, or any proprietary removal kit. If you have a magnetic tray, it’s handy for keeping screws organized, but a simple bowl works just as well. The only optional tool is a silicone‑based spray for lubricating stubborn hinge pins—just a few drops can make the door swing off more smoothly.

Most kitchen experts recommend removing the oven door every three to six months, depending on how heavily you use the oven. If you bake frequently—think weekly pizza nights or daily roasting—the door accumulates grease faster and benefits from more frequent cleaning. For occasional bakers, a bi‑annual schedule keeps the gasket supple and the glass clear without turning the task into a chore.

A good rule of thumb: check the door’s exterior after each major cleaning of the oven cavity. If you notice a haze that won’t wipe away with a damp cloth, schedule a removal for the next weekend. Consistency prevents the need for aggressive scrubbing that could damage the glass coating.

Yes, you can give the door a surface clean without taking it off, which is handy for quick touch‑ups. Spray a non‑abrasive kitchen cleaner onto a soft microfiber cloth and wipe the exterior and interior glass. Avoid spraying directly onto the glass; the spray can seep into the hinge mechanism and attract dust.

For the outer frame, a mixture of warm water and a few drops of dish soap works well. Use a soft brush to reach the corners where the gasket meets the metal. This method removes everyday splatter but won’t dissolve the baked‑on residue that settles behind the glass edge—hence the need for full removal for a deep clean.

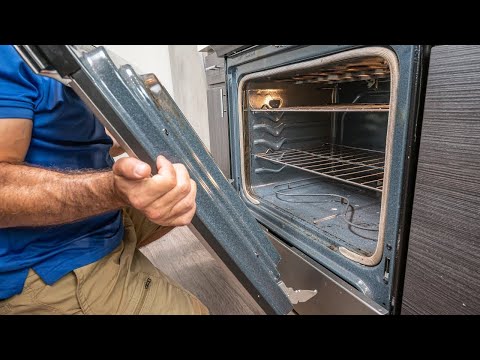

1. **Prep the area** – Lay down a thick towel on the floor and unplug the oven. If your model has a gas line, turn off the valve. 2. **Support the door** – With a helper, hold the door steady while you loosen the hinge bolts. Some models have a small latch on the top hinge; press it to release tension. 3. **Detach the hinges** – Using the screwdriver, remove the screws that secure the hinges to the oven frame. Keep the screws in a labeled container. 4. **Lift the door** – Once the hinges are free, gently set the door on the towel, glass side up.

Now for the cleaning: mix warm water with a tablespoon of baking soda and a few drops of dish soap. Soak a soft sponge in the solution and scrub the glass, paying special attention to the edges where grease pools. For stubborn carbon deposits, apply a paste of baking soda and water, let it sit for 10 minutes, then wipe clean. Rinse with a cloth dampened in plain water and dry with a lint‑free towel. Finally, wipe the metal frame and hinge plates with the same solution, then dry thoroughly before reassembly.

The door weighs between 12 and 20 pounds, and the glass is fragile. One person can technically remove it, but a second pair of hands dramatically reduces the risk of dropping the door or misaligning the hinges. Think of it like moving a large picture frame—you want someone to steady it while you unscrew the brackets. If you’re solo, use a sturdy support stand or a wooden block to prop the door up once the hinges are loose, then proceed slowly.

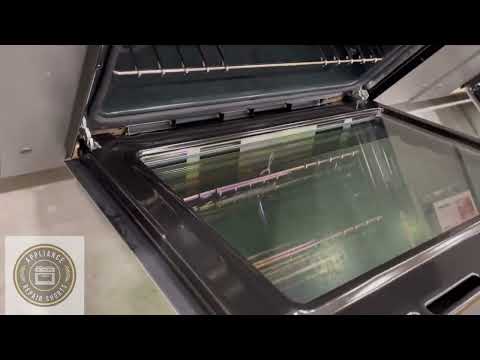

Start by aligning the hinge plates on the oven frame with the corresponding holes on the door. Insert the hinge bolts from the top, hand‑tighten them to keep the door from shifting, then slide the door into place. Once the door sits flush, tighten the bolts in a criss‑cross pattern to ensure even pressure on the frame. If your model uses quick‑release pins, snap them back into the holes until you hear a click. Finally, open and close the door a few times to verify smooth operation; adjust the bolts if you feel any binding.

Always disconnect power before you begin. Even if the oven is cool, a stray voltage can cause a shock. Wear cut‑resistant gloves to protect your hands from sharp edges on the glass. When lifting, keep the door upright; never tilt it sideways, as the glass can flex and crack under uneven stress. If you notice any chips or hairline cracks during removal, stop and consider a replacement—continuing to use a compromised door risks sudden breakage.

Also, keep the work area well‑ventilated. Cleaning solutions, especially those with ammonia or bleach, can release fumes that irritate the eyes and lungs. A simple kitchen fan or open window solves that problem.

Sometimes, grease or rust can cause the hinges to seize. First, spray a silicone‑based lubricant on the hinge pins and let it sit for five minutes. Gently tap the pins with a rubber mallet to break free any corrosion. If the door still refuses to budge, use a flat‑head screwdriver to gently pry the hinge plate away from the oven frame—apply steady pressure, not a sudden jerk, to avoid bending the metal.

If the pins are rusted beyond release, you may need to replace the hinge assembly. Whirlpool sells a complete hinge kit that includes new pins, brackets, and screws. Installing the new set follows the same steps as removal, just in reverse.

Many Whirlpool doors feature double‑glazed glass for better heat retention. The space between the panes is sealed with a thin layer of argon gas, and opening it is not recommended. Attempting to clean between the panels can break the seal, causing fogging and loss of insulation. Instead, focus on cleaning the outer surfaces and the gasket. If you notice permanent fogging between the panes, the door likely needs replacement rather than cleaning.

Take advantage of the downtime. Inspect the gasket for wear—look for cracks, brittleness, or compression set. A damaged gasket lets heat escape and can cause uneven cooking. Also, examine the hinge pins for corrosion; a quick wipe with a rust‑removing pad can extend their life. Finally, give the interior of the oven cavity a quick visual scan for loose crumbs or debris that may have fallen behind the door during previous cleanings.

If the glass is cracked, the gasket is shredded, or the hinges are permanently bent, swapping the entire door is the most cost‑effective solution. Whirlpool provides OEM replacement doors that match the model number exactly, ensuring the same glass thickness and hinge alignment. The replacement process mirrors removal: disconnect power, detach the old door, position the new one, and secure the hinges. Most homeowners complete the swap in under an hour with just a screwdriver and a helper.

Before buying, verify the part number printed on the interior frame of the existing door. Ordering the correct part avoids the frustration of a mismatch. Once the new door is installed, run a short heating cycle (around 150°F) to let the gasket settle and to ensure the door seals properly.
